Silicon Labs
Bluetooth Low Energy Wireless Xpress BGX13
BGX13S22GA
The Bluetooth Xpress Bluetooth 5 system-in-package module delivers a solution requiring no wireless firmware development for applications where ultra-small size is a key requirement.
OVERVIEW

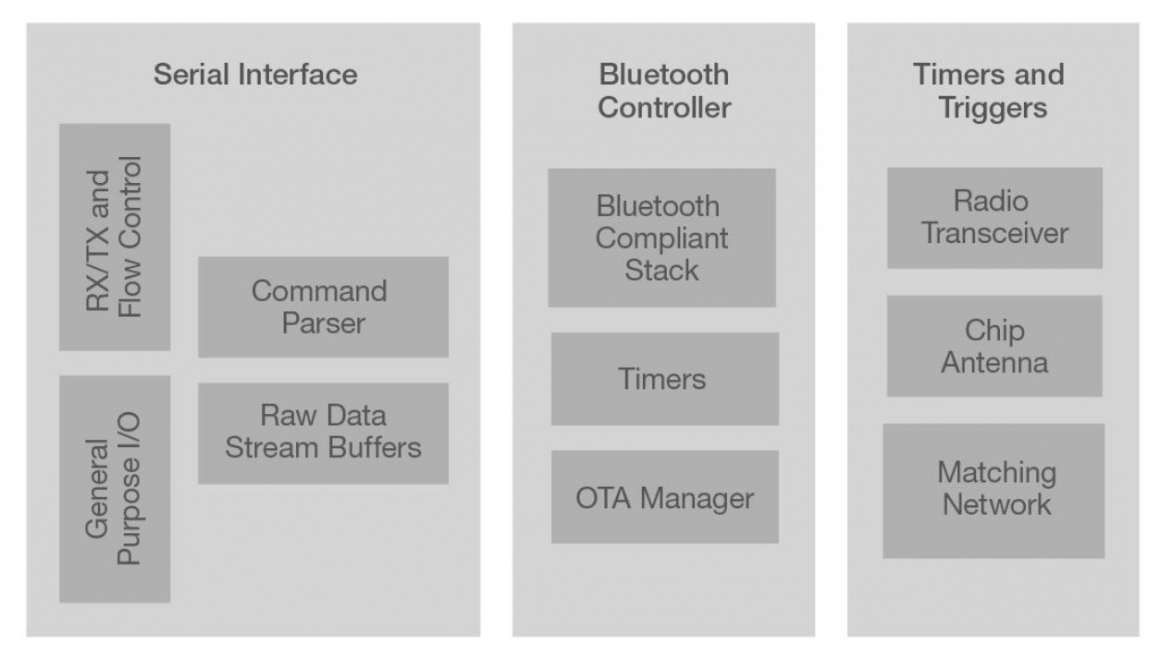

By combining an on-board Bluetooth stack, Xpress command interface and cable replacement firmware pre-programmed, BGX13S22GA delivers a serial-to-Bluetooth 5 solution in a package only 6.5 x 6.5 x 1.4 mm in size. Communicate wirelessly with smart phones and other Bluetooth Xpress devices. With its integrated antenna, RF certifications and built-in cloud connectivity for secure updates through the Xpress framework for iOS and Android development, BGX13S22GA addresses every challenge point in Bluetooth development, from device to cloud.
KEY FEATURES
- Bluetooth 5 low energy compliant
- Serial interface with hardware flow control
- GPIO control through command API
- Integrated antenna
- TX power up to 8 dBm
- Encrypted bonding and connectivity
- Operates as central or peripheral
- Onboard Bluetooth stack
- Centralized OTA through mobile app library
*Silicon Labs Authorized Distributor
