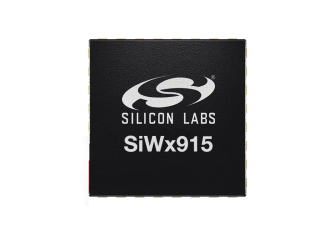

SiWx915 无线 SoCs | Wi-Fi 6 + 蓝牙低功耗 5.4

SiWx915

加入洽询单

产品叙述产品规格

产品叙述

SiWx915 SoC 是 Wi-Fi 6 设备系列中的第二款产品，非常适用于使用 Wi-Fi®、蓝牙低功耗 (LE)、Matter 和 IP 网络进行云连接的高能效或线路供电型物联网无线设备。SiWx915 SoC 包括 Wi-Fi 6 和蓝牙 LE 无线 CPU 子系统，以及集成式微控制器 (MCU) 应用子系统、安全功能、内存、外围设备子系统，所有这些都集成在一个 7 x 7 毫米的 QFN 封装中。无线子系统由运行速度高达 160 MHz 的多线程处理器、基带数字信号处理、模拟前端、2.4 GHz RF 收发器和集成功率放大器组成。应用子系统由运行速度高达 180 MHz 的 ARM® Cortex®-M4、嵌入式 SRAM 和闪存组成。ARM® Cortex®-M4F 专门用于外围设备和应用相关处理，而多线程处理器在独立线程上运行无线和网络协议栈，因此可提供完全集成的高性能解决方案，可直接用于各种嵌入式无线物联网应用。

目标应用场景:

智能家居
消费者健康和可穿戴设备
临床医学
工业
零售
智能建筑和城市
资产跟踪

产品规格

低功耗无线片上系统

Wi-Fi 6 single band 2.4 GHz and Bluetooth Low Energy 5.4 wireless radio
ARM® Cortex®-M4F application MCU up to 180 MHz
Integrated baseband processor, RF transceiver, high-power amplifier, balun and T/R switch
Embedded SRAM up to 672 KB
Embedded Flash up to 8 MB and optional external PSRAM support
Integrated Wi-Fi stack, TCP/IP stack, Bluetooth stack supporting wireless coexistence and Matter

Wi-Fi 6

Compliant to 2.4 GHz, single-spatial stream IEEE 802.11 b/g/n/ax
Support for 802.11ax 20 MHz features such as OFDMA, BSS Coloring, MU-MIMO, and Target Wake Time (TWT)
Transmit power up to +20 dBm with integrated PA
Receive sensitivity as low as -97.5 dBm
Data Rates: up to 86 Mbps (802.11ax MCS0 to MCS7)
Operating frequency range: 2412 MHz - 2484 MHz

蓝牙低功耗 5.4

Transmit power up to +19.5 dBm with integrated PA
Receive sensitivity: LE: -95 dBm, LR 125 Kbps: -106 dBm
Operating frequency range: 2402 MHz - 2480 MHz
Bluetooth Low Energy 1 Mbps, 2 Mbps and Long-Range modes (125 kbps, 500 kbps)

Matter 支持

Matter over Wi-Fi with Bluetooth LE commissioning

微控制器子系统

ARM® Cortex®-M4F core with up to 180 MHz
Integrated FPU, MPU, and NVIC
In-System Programming (ISP) and Over-the-Air (OTA) wireless firmware update
Power-On Reset (POR), Brown/Black-out and Black-out Detection
Rich set of Analog and Digital Peripherals
Digital Peripherals - SDIO, USART, UART, SPI, I2C, I2S, SIO, PWM, QEI
Timers: 16/32-bit, 1x 24-bit, WDT, RTC
Up to 22 GPIOs (GPIO Multiplexer)
Analog Peripherals - 12-bit 16-ch, 5 Msps ADC, 10-bit DAC
Op-amps Comparators, IR detector and Temp Sensor, capacitive touch sensor inputs

高安全性

QSPI Encrypted XIP from Flash (w/ AES-XTS)
Secure Zone
TRNG, Root of trust (PUF)
Secure Boot & OTA, Anti-roll back
Advanced Cryptographic Accelerators

低系统功耗

Wi-Fi Standby Associated mode current: 120 μA @ 1-second interval
Low MCU Sub-system active current: 50 μA/MHz in LP mode

软件和协议支持

Integrated Wi-Fi stack, TCP/IP stack, Bluetooth stack supporting wireless coexistence
Support for Embedded Client mode, Access Point mode, Concurrent Wi-Fi and Bluetooth LE mode in client mode
Supports advanced Wi-Fi and Networking security features: WPA, WPA2 (Personal/Enterprise), WPA3 (Personal)
Integrated TCP/IP stack supports HTTP/HTTPS, DHCP, SSL/TLS1.3, MQTT
Wireless firmware upgrade and provisioning
Supports both hosted modes, Radio Co-processor (RCP), Network Co-processor (NCP) and host-less (SoC) modes

工作条件
